Camshaft
MAN Camshaft 51.04401-5089
Genuine MAN camshaft for D2676 LE marine diesel engine family, machined to the factory profile and supplied ready to fit.

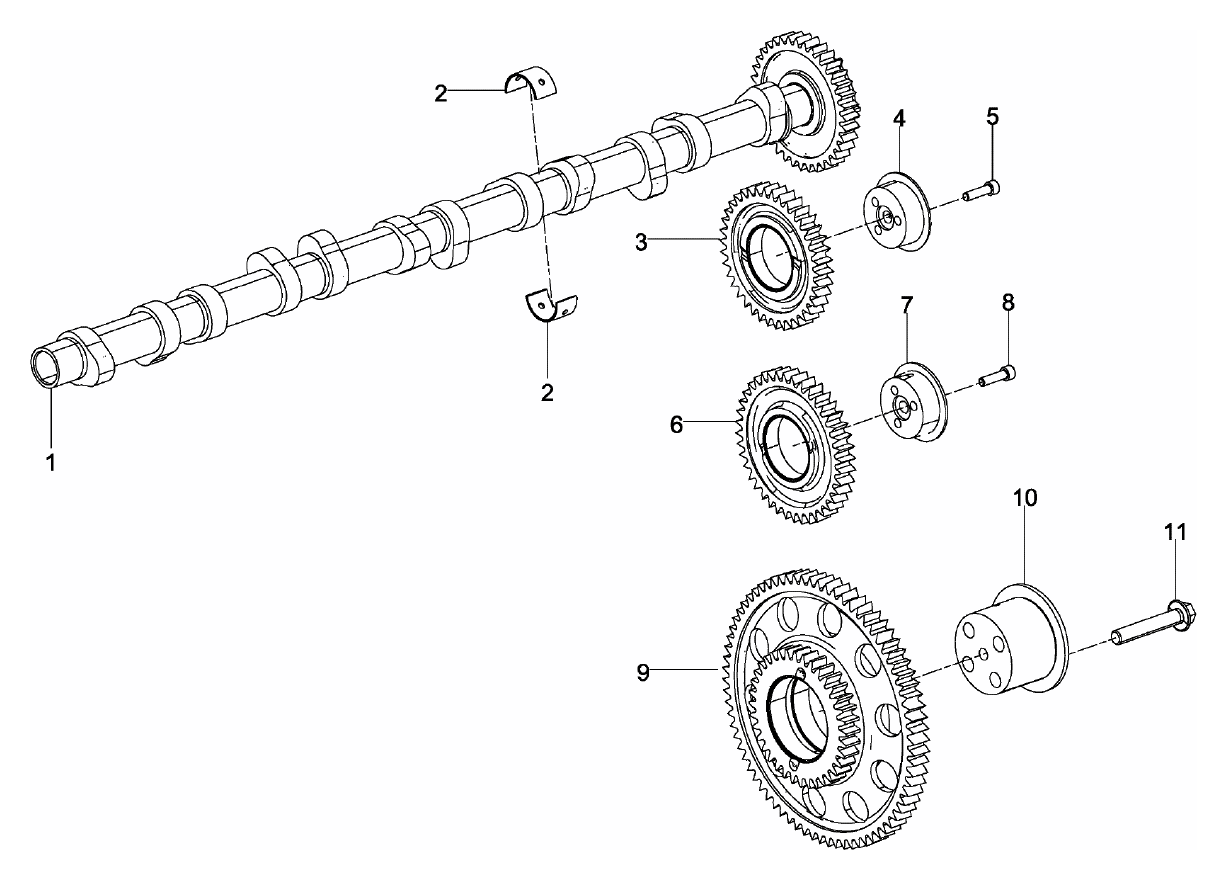

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Camshaft51.04401-5089
Engine familyD2676 LE
Previous part no.51.04401-5127
51.04401-5164
51.04401-5164
Weight8.21 kg
Dimensions (W×L×H)33 × 99.2 × 33 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN camshaft catalogue page for this engine (reference 51.#0170-0294). Item 1 is the camshaft supplied here; the remaining items are the related gears and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.04401-5089 | camshaft | 1 |
| 2 | 51.04410-0177 | camshaft bush | 14 |
| 3 | 51.04505-5159 | intermediate gear | 1 |
| 3 | 51.04505-5164 | intermediate gear | 1 |
| 3 | 51.04505-5204 | intermediate gear | 1 |
| 4 | 51.04506-0077 | gear stud small version | 1 |
| 4 | 51.04506-0114 | gear stud small | 1 |
| 5 | 06.02191-0410 | cylinder screw M8X30-10.9-MAN183-PHR with hexagon socket | 3 |
| 6 | 51.04505-5093 | intermediate gear | 1 |
| 6 | 51.04505-5150 | intermediate gear | 1 |
| 6 | 51.04505-5158 | intermediate gear | 1 |
| 6 | 51.04505-5163 | intermediate gear | 1 |
| 6 | 51.04505-5203 | intermediate gear | 1 |
| 7 | 51.04506-0077 | gear stud small version | 1 |
| 7 | 51.04506-0114 | gear stud small | 1 |
| 8 | 06.02191-0410 | cylinder screw M8X30-10.9-MAN183-PHR with hexagon socket | 3 |
| 9 | 51.04505-5133 | intermediate gear | 1 |
| 9 | 51.04505-5142 | intermediate gear | 1 |
| 9 | 51.04505-5152 | intermediate gear large | 1 |
| 9 | 51.04505-5169 | intermediate gear large | 1 |
| 9 | 51.04505-5202 | intermediate gear large | 1 |
| 10 | 51.04506-0078 | gear stud large version | 1 |
| 10 | 51.04506-0107 | gear stud large | 1 |
| 11 | 06.03216-8615 | hex flange bolt M14X80-10.9-MAN183-B1 | 4 |
Specifications
| Part number | 51.04401-5089 |
| Part no. (other formats) | 51.04401.5089 · 51044015089 |
| Description | Camshaft |
| Engine family | D2676 LE |
| Engine / application |
|
| Previous part no. |
|
| Weight (kg) | 8.21 |
| Dimensions W×L×H (cm) | 33 × 99.2 × 33 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
