Camshaft
MAN Camshaft 51.04402-0054
Genuine MAN camshaft for D2862 LE marine diesel engine family, machined to the factory profile and supplied ready to fit.

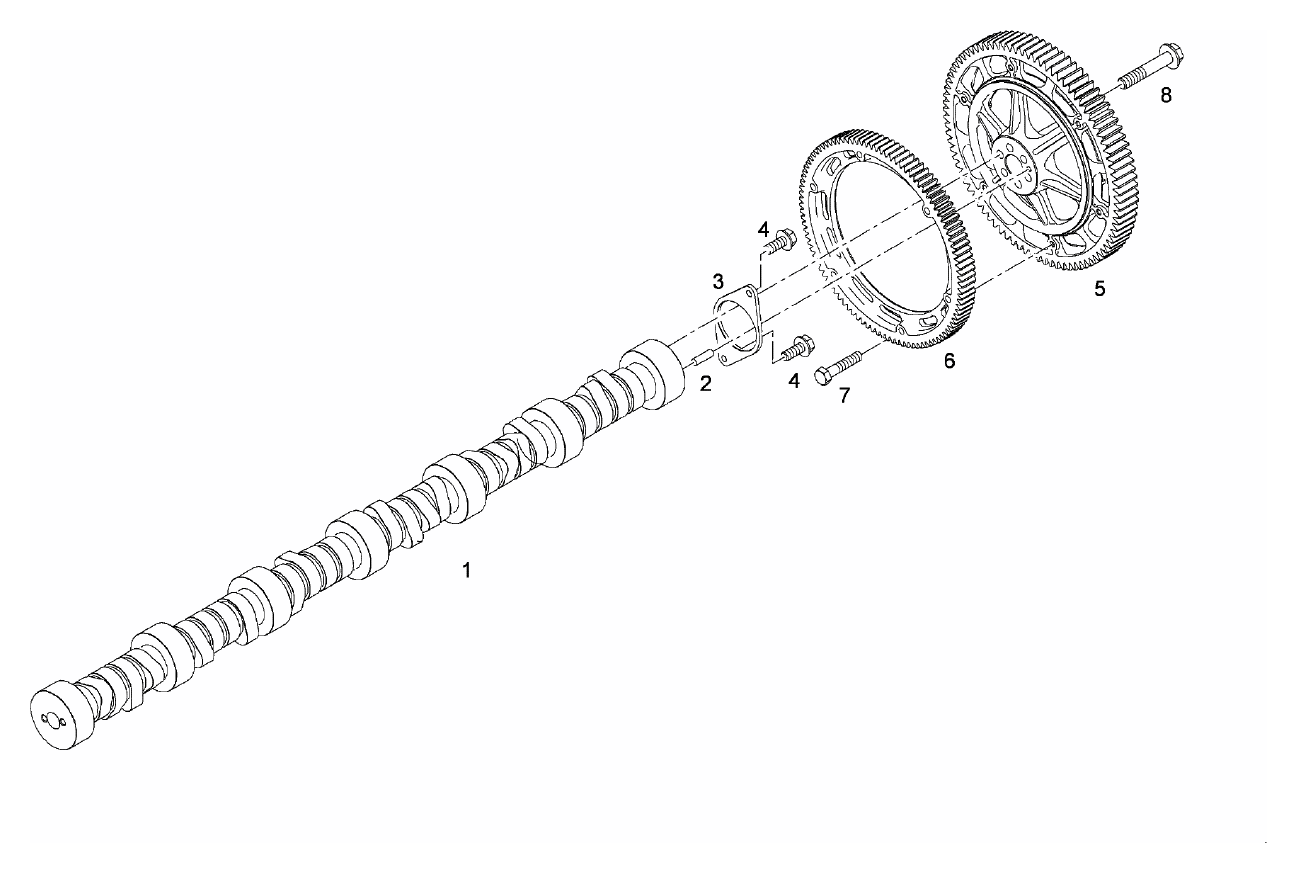

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Camshaft51.04402-0054
Engine familyD2862 LE
Previous part no.51.04401-0923
Weight24.7 kg
Dimensions (W×L×H)8 × 108 × 8 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN camshaft catalogue page for this engine (reference 51.#0170-0287). Item 1 is the camshaft supplied here; the remaining items are the related gears and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.04401-0923 | camshaft | 1 |
| 1 | 51.04402-0054 | camshaft | 1 |
| 2 | 06.22022-0912 | dowel pin 6M6X20-ST50-2K | 1 |
| 2 | 06.22140-0912 | dowel pin 6M6X20 | 1 |
| 3 | 51.04405-0008 | bearing flange for camshaft | 1 |
| 4 | 06.03216-8304 | hex flange bolt M8X20-10.9-MAN183-B1 | 2 |
| 5 | 51.04501-0209 | camshaft gear | 1 |
| 6 | 51.11306-0026 | idler gear | 1 |
| 6 | 51.11306-0047 | idler gear | 1 |
| 7 | 06.01284-7119 | hexagon screw M8X40-10.9-MAN183-PHR | 6 |
| 8 | 06.03216-8411 | hex flange bolt M10X55-10.9-MAN183-B1 | 6 |
Specifications
| Part number | 51.04402-0054 |
| Part no. (other formats) | 51.04402.0054 · 51044020054 |
| Description | Camshaft |
| Engine family | D2862 LE |
| Engine / application |
|
| Previous part no. | 51.04401-0923 |
| Weight (kg) | 24.7 |
| Dimensions W×L×H (cm) | 8 × 108 × 8 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
