Intercooler
MAN Intercooler 51.09500-7036
Genuine MAN intercooler for D2840 / D2842 / D2848 marine diesel engine family, the charge-air cooler that cools the turbocharger's boost air before it reaches the cylinders.

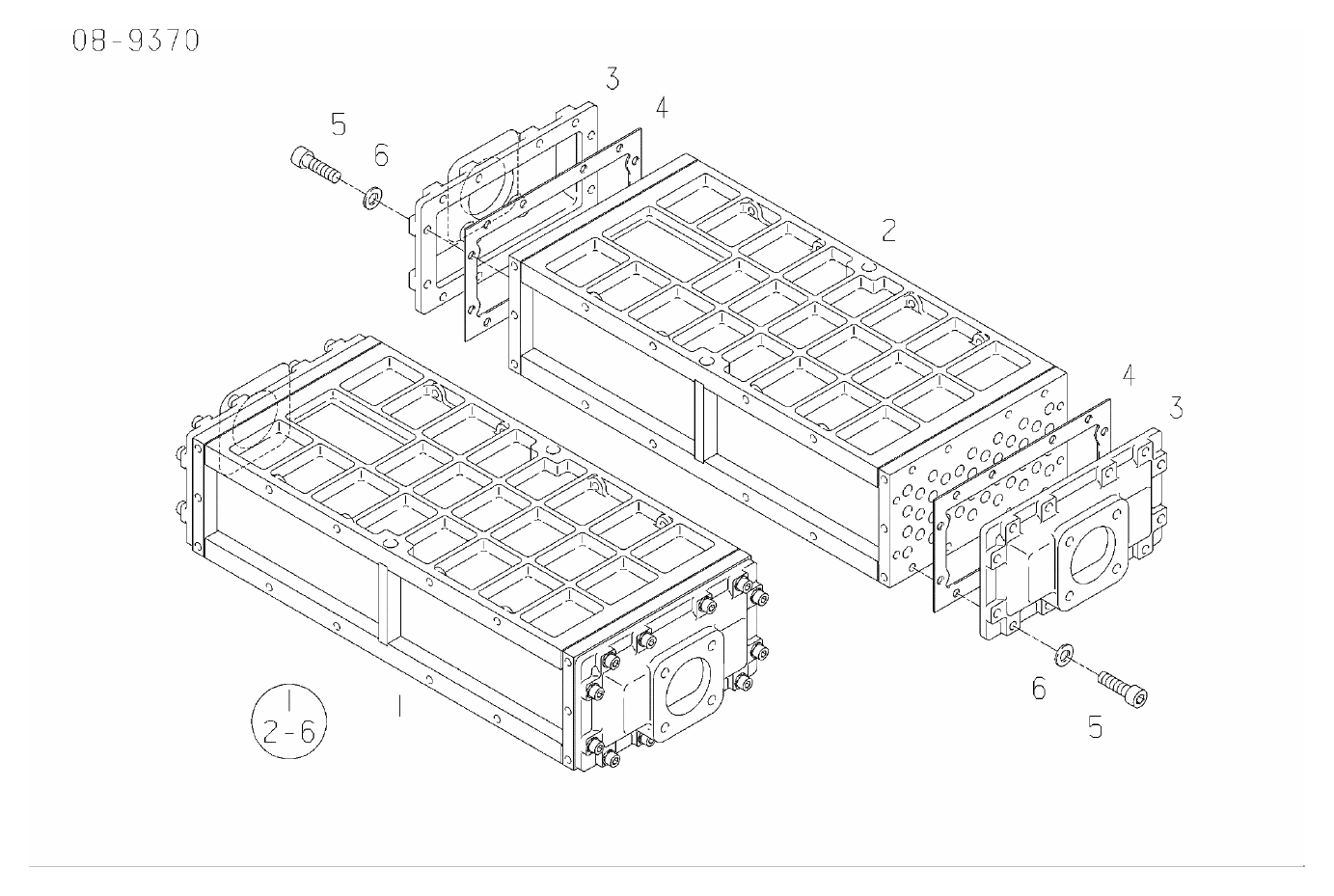

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Intercooler51.09500-7036
Engine familyD2840 / D2842 / D2848
Previous part no.51.09500-7064
51.09500-7026
51.09500-7026
Weight41 kg
Dimensions (W×L×H)24 × 13 × 59 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN charge-air catalogue page for this engine (reference 51.#0000-0431). Item 1 is the intercooler supplied here; the remaining items are the related covers, seals, gaskets and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09500-7036 | intercooler | 1 |
| 2 | 51.09501-0011 | radiator core | 1 |
| 3 | 51.09503-0029 | flanged cover | 2 |
| 4 | 81.09905-0002 | Intercooler seal 92/207X132/239X1,5-CENTELLEN-R | 2 |
| 5 | 06.02093-4410 | cylinder screw M8X30-8.8-MAN183-B1 with hexagon socket | 24 |
| 6 | 06.15033-0813 | washer 8X15X1,6-200HV-MAN183-B1 | 24 |
Specifications
| Part number | 51.09500-7036 |
| Part no. (other formats) | 51.09500.7036 · 51095007036 |
| Description | Intercooler |
| Engine family | D2840 / D2842 / D2848 |
| Engine / application |
|
| Previous part no. |
|
| Weight (kg) | 41 |
| Dimensions W×L×H (cm) | 24 × 13 × 59 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
