Intercooler
MAN Intercooler 51.09500-7050
Genuine MAN intercooler for D2840 / D2842 marine diesel engine family, the charge-air cooler that cools the turbocharger's boost air before it reaches the cylinders.

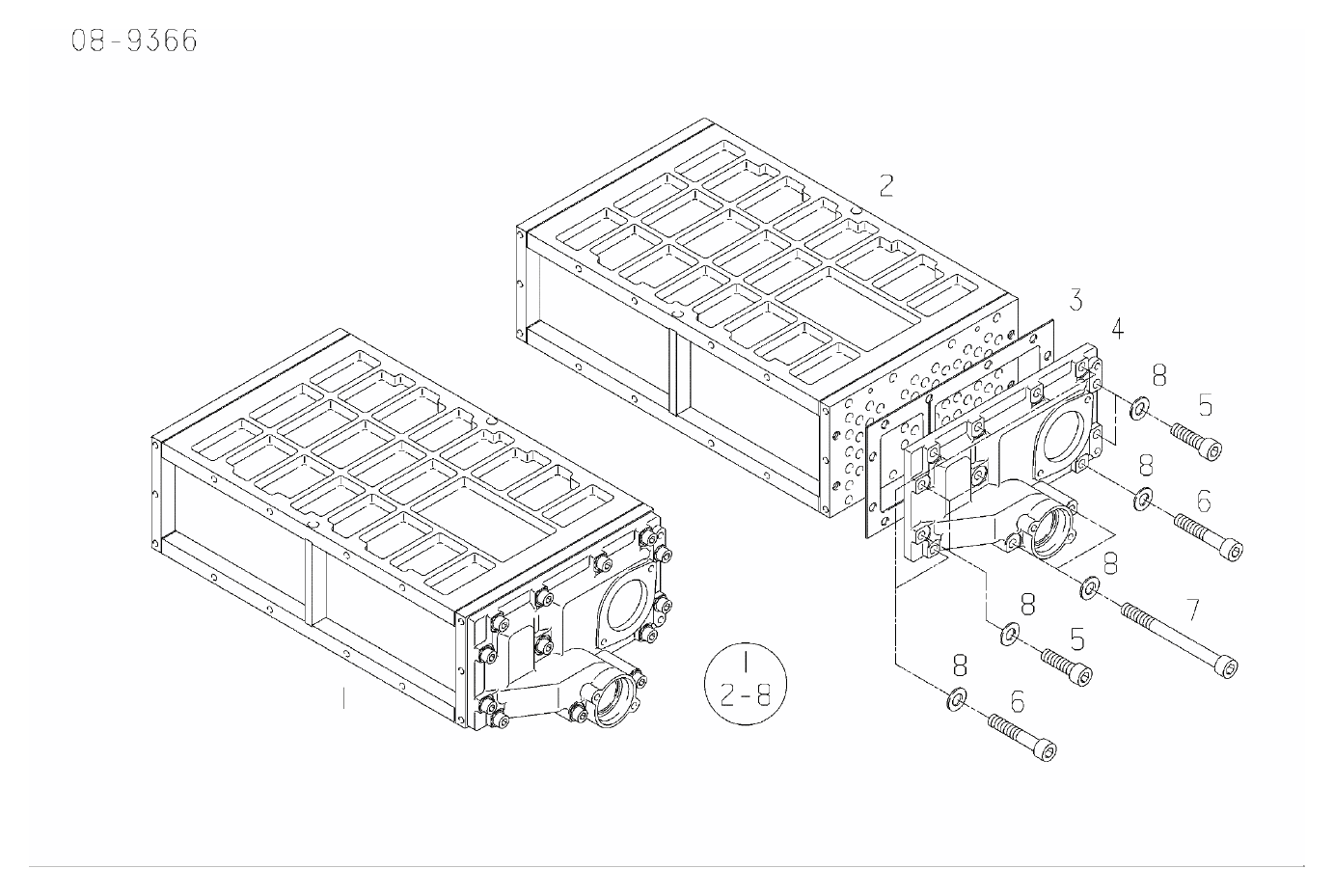

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Intercooler51.09500-7050
Engine familyD2840 / D2842
Previous part no.51.09500-7089
Weight76 kg
Dimensions (W×L×H)37 × 16.5 × 61 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN charge-air catalogue page for this engine (reference 51.#0110-0767). Item 1 is the intercooler supplied here; the remaining items are the related covers, seals, gaskets and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09500-7072 | intercooler TITAN | 1 |
| 1 | 51.09500-7050 | intercooler | 1 |
| 2 | 51.09501-0018 | radiator core intercooler | 1 |
| 2 | 51.09501-0013 | radiator core | 1 |
| 3 | 51.09905-0058 | Intercooler seal | 1 |
| 4 | 51.09503-0038 | flanged cover | 1 |
| 5 | 06.02099-0167 | cylinder screw with hexagon socket M10X35-8.8-A3C | 5 |
| 6 | 06.02099-0191 | cylinder screw with hexagon socket M10X55-8.8-A3C | 6 |
| 7 | 06.02191-0523 | cylinder screw M10X110-10.9-MAN183-PHR with hexagon socket | 2 |
| 8 | 06.15033-0814 | washer 10X18X1,6-200HV-MAN183-B1 | 13 |
| 06.01014-9214 | hex shoulder stud M10X45-10.9-MAN183-PHR | 2 | |
| 51.90710-0394 | washer 11X21X4-9SMNPB28K-FE/ZN8/C | 2 |
Specifications
| Part number | 51.09500-7050 |
| Part no. (other formats) | 51.09500.7050 · 51095007050 |
| Description | Intercooler |
| Engine family | D2840 / D2842 |
| Engine / application |
|
| Previous part no. | 51.09500-7089 |
| Weight (kg) | 76 |
| Dimensions W×L×H (cm) | 37 × 16.5 × 61 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
