Intercooler
MAN Intercooler 51.09500-7068
Genuine MAN intercooler for D2840 / D2842 / D2848 marine diesel engine family, the charge-air cooler that cools the turbocharger's boost air before it reaches the cylinders.

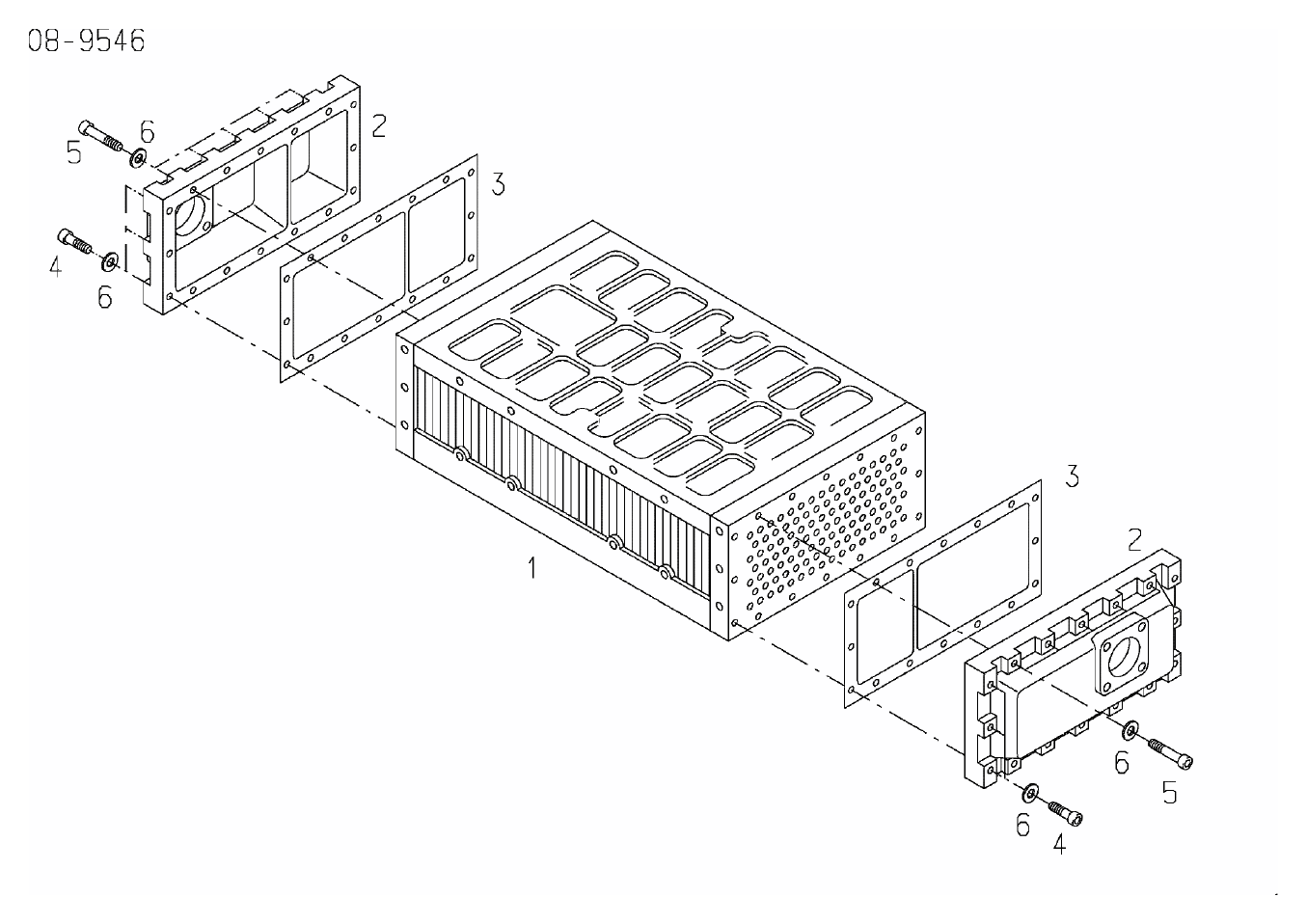

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Intercooler51.09500-7068
Engine familyD2840 / D2842 / D2848
Previous part no.51.09500-7069
Weight54.4 kg
Dimensions (W×L×H)31 × 16 × 51.5 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN charge-air catalogue page for this engine (reference 51.#0110-0549). Item 1 is the intercooler supplied here; the remaining items are the related covers, seals, gaskets and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09500-7068 | intercooler | 1 |
| 2 | 51.09503-0039 | cover | 2 |
| 3 | 51.09905-0046 | Intercooler seal | 2 |
| 4 | 06.01283-5218 | hexagon screw M10X35-8.8-MAN183-B1 | 4 |
| 4 | 06.01283-5221 | hexagon screw M10X50-8.8-MAN183-B1 | 2 |
| 5 | 06.01014-7219 | hex shoulder stud M10X70-10.9-MAN183-B1 | 4 |
| 5 | 06.01283-5222 | hexagon screw M10X55-8.8-MAN183-B1 | 12 |
| 6 | 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | 22 |
Specifications
| Part number | 51.09500-7068 |
| Part no. (other formats) | 51.09500.7068 · 51095007068 |
| Description | Intercooler |
| Engine family | D2840 / D2842 / D2848 |
| Engine / application |
|
| Previous part no. | 51.09500-7069 |
| Weight (kg) | 54.4 |
| Dimensions W×L×H (cm) | 31 × 16 × 51.5 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
