Intercooler
MAN Intercooler 51.09500-7130
Genuine MAN intercooler for D2868 marine diesel engine family, the charge-air cooler that cools the turbocharger's boost air before it reaches the cylinders.

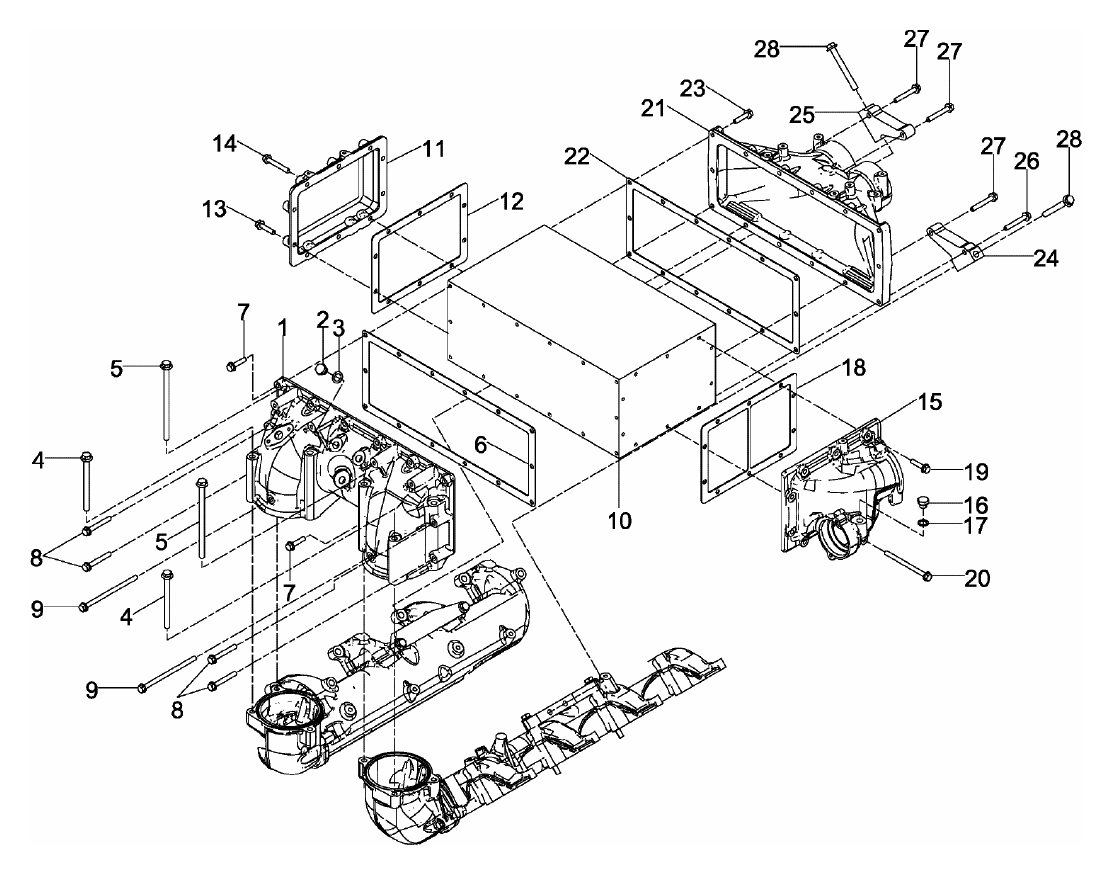

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Intercooler51.09500-7130
Engine familyD2868
Previous part no.51.09500-7091
Weight38.15 kg
Dimensions (W×L×H)26 × 18.4 × 46.3 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN charge-air catalogue page for this engine (reference 51.#0110-0710). Item 10 is the intercooler supplied here; the remaining items are the related covers, seals, gaskets and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09411-0898 | intercooler elbow from intercooler | 1 |
| 2 | 06.08099-0025 | drain plug AM14X1,5-ST-MAN183-B1 | 2 |
| 2 | 06.08049-0045 | drain plug M14X1,5-ST-MAN183-B1 | 2 |
| 2 | 06.08099-0026 | drain plug AM16X1,5-ST-MAN183-B1 | 1 |
| 2 | 06.08049-0037 | drain plug M16X1,5-ST-MAN183-B1 | 1 |
| 3 | 06.56631-0235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 2 |
| 3 | 06.56631-0236 | seal 16,3X24X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 4 | 06.03216-8419 | hex flange bolt M10X120-10.9-MAN183-B1 | 2 |
| 5 | 06.03216-8440 | hex flange bolt M10X170-10.9-MAN183-B1 | 4 |
| 6 | 51.09904-0029 | Intercooler seal | 1 |
| 6 | 51.09905-0121 | Intercooler seal | 1 |
| 7 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 8 |
| 8 | 06.03216-8312 | hex flange bolt M8X60-10.9-MAN183-B1 | 4 |
| 9 | 06.03216-8321 | hex flange bolt M8X140-10.9-MAN183-B1 | 2 |
| 10 | 51.09500-7130 | intercooler | 1 |
| 11 | 51.09503-5004 | water space cover | 1 |
| 12 | 51.09905-0116 | gasket | 1 |
| 13 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 9 |
| 13 | 06.03216-8310 | hex flange bolt M8X50-10.9-MAN183-B1 | 6 |
| 14 | 06.03216-8311 | hex flange bolt M8X55-10.9-MAN183-B1 | 1 |
| 15 | 51.09503-0080 | water space cover | 1 |
| 16 | 51.90310-0241 | drain plug M14X1,5X9-CUZN39PB3-SW19 | 1 |
| 17 | 06.56190-0706 | seal A14X20-CU | 1 |
| 18 | 51.09905-0117 | gasket | 1 |
| 19 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 4 |
| 19 | 06.03216-8310 | hex flange bolt M8X50-10.9-MAN183-B1 | 5 |
| 19 | 06.03216-8311 | hex flange bolt M8X55-10.9-MAN183-B1 | 1 |
| 20 | 06.03216-8323 | hex flange bolt M8X160-10.9-MAN183-B1 | 1 |
| 21 | 51.09411-0919 | intercooler elbow to intercooler | 1 |
| 22 | 51.09904-0029 | Intercooler seal | 1 |
| 22 | 51.09905-0121 | Intercooler seal | 1 |
| 23 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 10 |
| 24 | 51.09540-0070 | carrier left | 1 |
| 25 | 51.09540-0098 | carrier right | 1 |
| 26 | 06.03216-8311 | hex flange bolt M8X55-10.9-MAN183-B1 | 1 |
| 27 | 06.03216-8312 | hex flange bolt M8X60-10.9-MAN183-B1 | 3 |
| 28 | 06.03216-8415 | hex flange bolt M10X80-10.9-MAN183-B1 | 2 |
Specifications
| Part number | 51.09500-7130 |
| Part no. (other formats) | 51.09500.7130 · 51095007130 |
| Description | Intercooler |
| Engine family | D2868 |
| Engine / application | D2868 LE4.. |
| Previous part no. | 51.09500-7091 |
| Weight (kg) | 38.15 |
| Dimensions W×L×H (cm) | 26 × 18.4 × 46.3 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
