MAN Intercooler 51.09500-7136
Genuine MAN intercooler for D2862 marine diesel engine family, the charge-air cooler that cools the turbocharger's boost air before it reaches the cylinders.

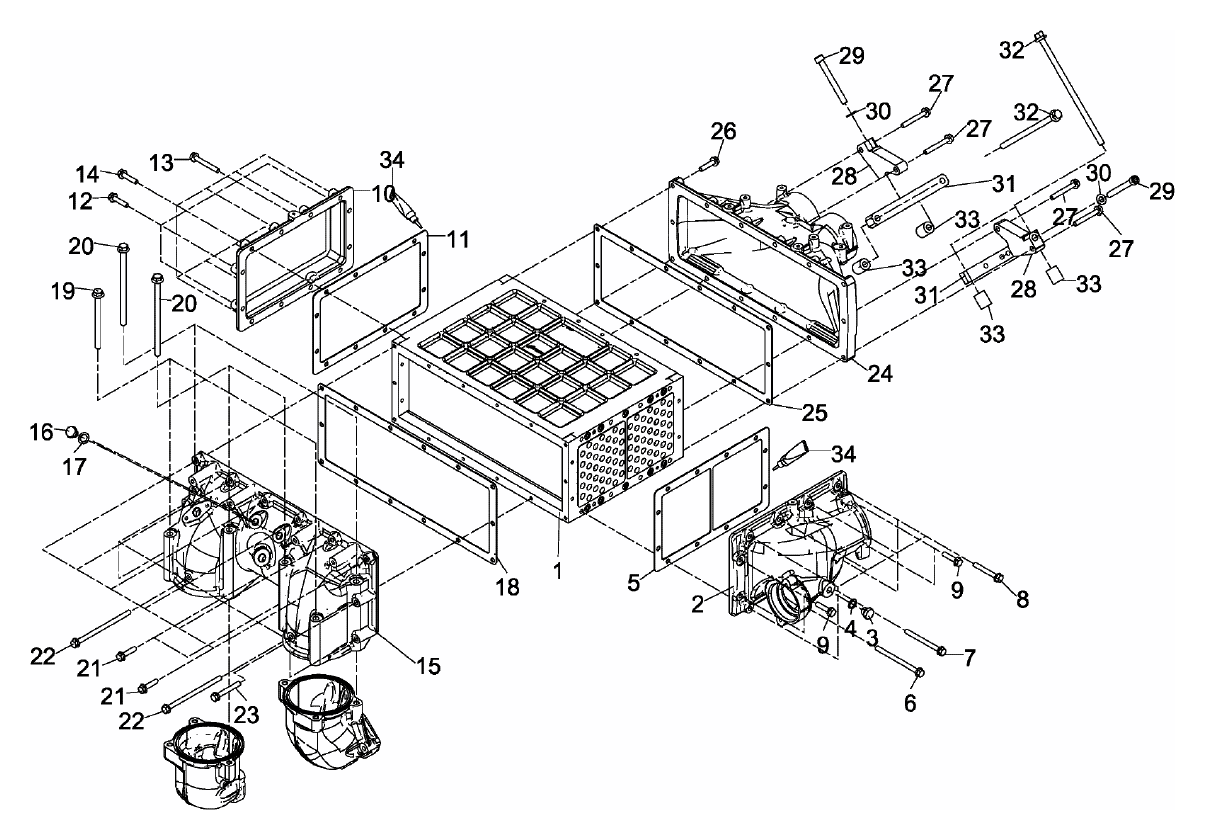

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Intercooler51.09500-7136
Engine familyD2862
Previous part no.51.09500-7092
Weight53.88 kg
Dimensions (W×L×H)30 × 18.5 × 46.3 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN charge-air catalogue page for this engine (reference 51.#0110-0768). Item 1 is the intercooler supplied here; the remaining items are the related covers, seals, gaskets and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09500-7136 | intercooler | 1 |
| 2 | 51.09503-0081 | water space cover | 1 |
| 3 | 51.90310-0308 | drain plug M14X1,5X9-CU1-SW19 | 1 |
| 4 | 06.56190-0706 | seal A14X20-CU | 1 |
| 5 | 51.09905-0115 | gasket | 1 |
| 6 | 06.03216-8320 | hex flange bolt M8X130-10.9-MAN183-B1 | 1 |
| 7 | 06.03216-8318 | hex flange bolt M8X110-10.9-MAN183-B1 | 1 |
| 8 | 06.03216-8310 | hex flange bolt M8X50-10.9-MAN183-B1 | 6 |
| 9 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 4 |
| 10 | 51.09503-0060 | water space cover | 1 |
| 11 | 51.09905-0114 | gasket | 1 |
| 12 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 3 |
| 13 | 06.03216-8311 | hex flange bolt M8X55-10.9-MAN183-B1 | 1 |
| 14 | 06.03216-8310 | hex flange bolt M8X50-10.9-MAN183-B1 | 8 |
| 15 | 51.09411-0898 | intercooler elbow from intercooler | 1 |
| 16 | 06.08099-0025 | drain plug AM14X1,5-ST-MAN183-B1 | 2 |
| 16 | 06.08049-0045 | drain plug M14X1,5-ST-MAN183-B1 | 2 |
| 16 | 06.08049-0037 | drain plug M16X1,5-ST-MAN183-B1 | 1 |
| 17 | 06.56631-0235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 2 |
| 17 | 06.56631-0236 | seal 16,3X24X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 18 | 51.09904-0029 | Intercooler seal | 1 |
| 18 | 51.09905-0121 | Intercooler seal | 1 |
| 19 | 06.03216-8420 | hex flange bolt M10X130-10.9-MAN183-B1 | 2 |
| 20 | 06.03216-8440 | hex flange bolt M10X170-10.9-MAN183-B1 | 4 |
| 21 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 8 |
| 22 | 06.03216-8321 | hex flange bolt M8X140-10.9-MAN183-B1 | 2 |
| 23 | 06.03216-8312 | hex flange bolt M8X60-10.9-MAN183-B1 | 4 |
| 24 | 51.09411-0919 | intercooler elbow to intercooler | 1 |
| 25 | 51.09904-0029 | Intercooler seal | 1 |
| 25 | 51.09905-0121 | Intercooler seal | 1 |
| 26 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 10 |
| 27 | 06.03216-8311 | hex flange bolt M8X55-10.9-MAN183-B1 | 4 |
| 28 | 51.09540-0128 | carrier intercooler | 2 |
| 29 | 06.02191-0521 | cylinder screw with hexagon socket M10X90-10.9-MAN183-PHR | 2 |
| 30 | 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | 2 |
| 31 | 51.09540-0129 | bracket intercooler | 2 |
| 32 | 06.03216-8422 | hex flange bolt M10X150-10.9-MAN183-B1 | 4 |
| 33 | 51.91701-0831 | bush 10,5X22X28-ST35NBK | 4 |
| 34 | 04.10394-9385 | sealant LOCTITESI5970-50ML | NB |
Specifications
| Part number | 51.09500-7136 |
| Part no. (other formats) | 51.09500.7136 · 51095007136 |
| Description | Intercooler |
| Engine family | D2862 |
| Engine / application | D2862 LE3../LE4.. |
| Previous part no. | 51.09500-7092 |
| Weight (kg) | 53.88 |
| Dimensions W×L×H (cm) | 30 × 18.5 × 46.3 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
