Intercooler
MAN Intercooler 51.09500-7194
Genuine MAN intercooler for D2862 marine diesel engine family, the charge-air cooler that cools the turbocharger's boost air before it reaches the cylinders.

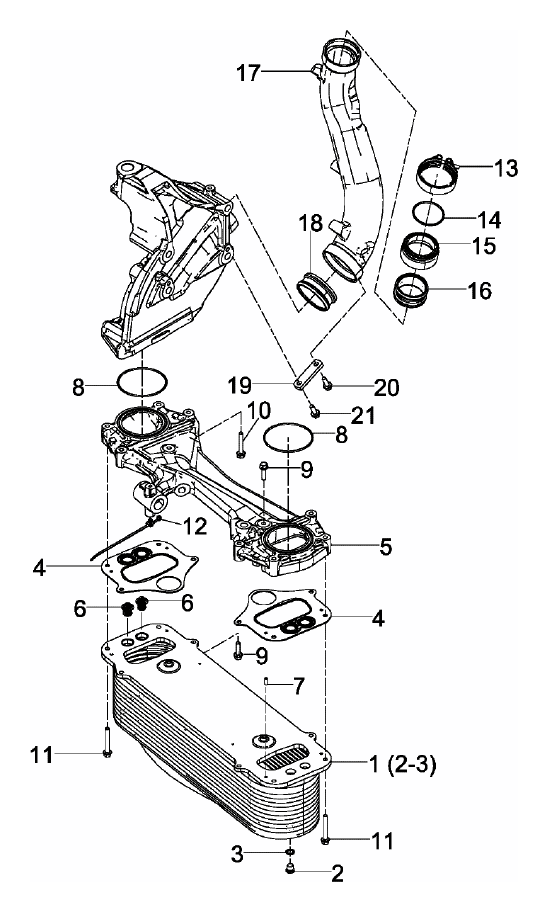

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Intercooler51.09500-7194
Engine familyD2862
Previous part no.51.09500-7189
Weight10.563 kg
Dimensions (W×L×H)25 × 15 × 65 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN charge-air catalogue page for this engine (reference 51.#0111-0444). Item 1 is the intercooler supplied here; the remaining items are the related covers, seals, gaskets and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09500-7189 | intercooler HD | 1 |
| 1 | 51.09500-7194 | intercooler | 1 |
| 2 | 06.08049-0044 | drain plug M12X1,5-ST-MAN183-B1 | 1 |
| 3 | 06.56631-0234 | seal 12,3X18X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 4 | 51.09905-0098 | gasket intercooler | 2 |
| 5 | 51.09540-0229 | connection plate F HD LLK | 1 |
| 6 | 51.06402-0100 | thermostat | 2 |
| 7 | 06.22120-1008 | pin 6X16-ST | NB |
| 8 | 06.56343-3237 | O-ring 96X3B-FPM1-70-GN | 2 |
| 9 | 06.03215-8306 | hex flange bolt M8X30-8.8-MAN183-B1 | 2 |
| 9 | 06.03216-8306 | hex flange bolt M8X30-10.9-MAN183-B1 | 1 |
| 10 | 06.03216-8310 | hex flange bolt M8X50-10.9-MAN183-B1 | 1 |
| 11 | 06.03216-8312 | hex flange bolt M8X60-10.9-MAN183-B1 | 7 |
| 12 | 51.97401-0557 | cable binder 4,7X202/6,5-7-PA4.6 | 1 |
| 13 | 51.97445-0076 | profiled clamp 77X20X1-W1 | 1 |
| 14 | 06.56936-2423 | O-ring 60X3N-FKM1-70-GN | 1 |
| 15 | 51.09412-0404 | air intake manifold | 1 |
| 16 | 51.98182-0121 | extension tube | 1 |
| 17 | 51.09412-0327 | charge-air pipe | 1 |
| 18 | 51.98182-0105 | extension tube | 1 |
| 19 | 51.97485-0475 | bracket | 1 |
| 20 | 06.03216-8305 | hex flange bolt M8X25-10.9-MAN183-B1 | 1 |
| 21 | 06.03216-8304 | hex flange bolt M8X20-10.9-MAN183-B1 | 1 |
Specifications
| Part number | 51.09500-7194 |
| Part no. (other formats) | 51.09500.7194 · 51095007194 |
| Description | Intercooler HD |
| Engine family | D2862 |
| Engine / application | D2862 LE2.. |
| Previous part no. | 51.09500-7189 |
| Weight (kg) | 10.563 |
| Dimensions W×L×H (cm) | 25 × 15 × 65 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
