Intercooler
MAN Intercooler 51.09500-7196
Genuine MAN intercooler for D2676 / D2862 / D2868 marine diesel engine family, the charge-air cooler that cools the turbocharger's boost air before it reaches the cylinders.

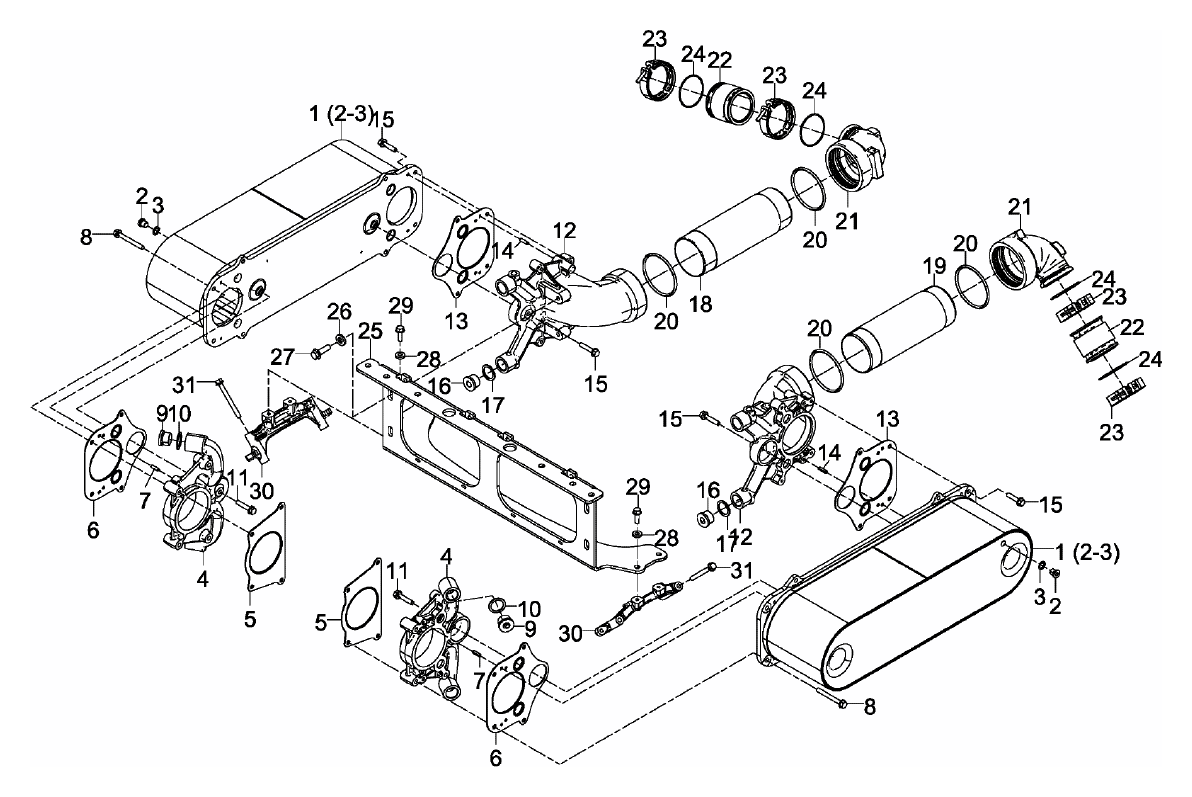

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Intercooler51.09500-7196
Engine familyD2676 / D2862 / D2868
Previous part no.51.09500-7160
51.09500-7168
51.09500-7168
Weight12.9 kg
Dimensions (W×L×H)20.5 × 18.5 × 62 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN charge-air catalogue page for this engine (reference 51.#0111-0051). Item 1 is the intercooler supplied here; the remaining items are the related covers, seals, gaskets and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09500-7160 | intercooler | 2 |
| 1 | 51.09500-7168 | intercooler | 2 |
| 1 | 51.09500-7196 | intercooler | 2 |
| 2 | 06.08049-0044 | drain plug M12X1,5-ST-MAN183-B1 | 1 |
| 3 | 06.56631-0234 | seal 12,3X18X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 4 | 51.09540-0205 | connection plate F LLK | 2 |
| 5 | 51.09905-0091 | Intercooler seal | 2 |
| 6 | 51.09905-0090 | Intercooler seal | 2 |
| 7 | 06.22220-1110 | spiral dowel pin 6X20-ST | 4 |
| 8 | 06.03216-8314 | hex flange bolt M8X70-10.9-MAN183-B1 | 8 |
| 9 | 06.08042-0609 | drain plug M26X1,5-ST-A3C | 2 |
| 10 | 06.56631-0112 | seal 26,7X34,93X2-ST/FPM1-80 with elastomer lip | 2 |
| 11 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 2 |
| 12 | 51.09412-0191 | intercooler elbow EINTRITT LLK | 2 |
| 13 | 51.09905-0090 | Intercooler seal | 2 |
| 14 | 06.22220-1110 | spiral dowel pin 6X20-ST | 4 |
| 15 | 06.03216-8307 | hex flange bolt M8X35-10.9-MAN183-B1 | 10 |
| 16 | 06.08042-0609 | drain plug M26X1,5-ST-A3C | 2 |
| 17 | 06.56631-0112 | seal 26,7X34,93X2-ST/FPM1-80 with elastomer lip | 2 |
| 18 | 51.98182-0049 | extension tube | 1 |
| 19 | 51.98182-0177 | extension tube intercooler elbow F LADELUFT | 1 |
| 20 | 06.56936-3004 | O-ring 86X5N-FPM1-70-GN | 4 |
| 21 | 51.09411-0664 | intercooler elbow | 2 |
| 22 | 51.09411-0717 | charge-air pipe | 2 |
| 23 | 51.97445-0076 | profiled clamp 77X20X1-W1 | 4 |
| 24 | 06.56936-2479 | O-ring 63X2,5-FPM1-70-GN | 4 |
| 25 | 51.09540-5020 | bracket intercooler | 1 |
| 26 | 06.15232-0106 | washer 10,5X25X4-ST50-2 | 4 |
| 27 | 06.03216-8407 | hex flange bolt M10X35-10.9-MAN183-B1 | 4 |
| 28 | 51.90710-0636 | washer 9X19X4 | 4 |
| 29 | 06.03216-8305 | hex flange bolt M8X25-10.9-MAN183-B1 | 4 |
| 30 | 51.09440-0255 | bracket intercooler elbow F LLK | 2 |
| 31 | 06.03216-8315 | hex flange bolt M8X80-10.9-MAN183-B1 | 4 |
Specifications
| Part number | 51.09500-7196 |
| Part no. (other formats) | 51.09500.7196 · 51095007196 |
| Description | Intercooler |
| Engine family | D2676 / D2862 / D2868 |
| Engine / application |
|
| Previous part no. |
|
| Weight (kg) | 12.9 |
| Dimensions W×L×H (cm) | 20.5 × 18.5 × 62 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
